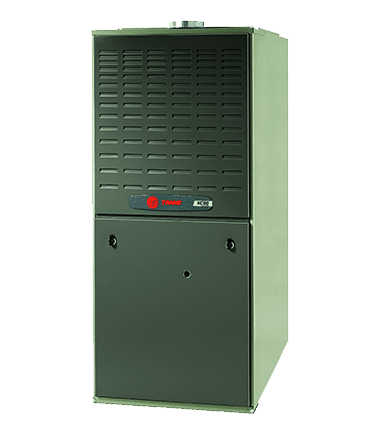

Trane XC80
Estimated Price
Price depends on location, installation feels and additional components. Contact a dealer for pricing info.
Communicating technology for the ultimate comfort and greater efficiency. The advanced ComfortLink II allows the XC80 to constantly configure itself for optimal performance year after year.
Overview
Efficient Performance
The XC80 two-stage furnace is rated with up to 80% AFUE
ComfortLink II Communicating Capability
ComfortLink II communicating technology connects all of your key components so your system automatically charges, configures and calibrates for optimal performance through the lifetime of your products.
Comfortable, even heating
Variable-speed fan motor adjusts speed to provide a consistent flow of warm, comfortable air with quiet operation.
Cleaner, healthier indoor air
Add Trane CleanEffects to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.
Specifications
Every Trane gas forced air furnace is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on.
- ComfortLink II communicating capability
- Communicating user interface
- Variable-speed blower motor
- Two-stage gas heat
- Heavy gauge, two-tone powder-painted cabinet
- Increased dehumidification with Comfort-R
- Durable silicon nitride hot surface igniter
- Multi-port, in-shot burners
- One-piece aluminized steel heat exchanger with no welds
- 24-volt fuse to protect controls
- Insulated cabinet for quiet operation
- Convertible to horizontal, left or right
- Compatible with ERV, humidifier and air cleaner
XC80 variable-speed, 2-stage upflow/horizontal furnace models
| MODEL | NOMINAL TONS | AFUE | HEIGHT (IN.) | WIDTH (IN.) | DEPTH (IN.) |
|---|---|---|---|---|---|
| TUD2B060ACV32A | 3 | 80.00 | 40 | 17.5 | 28 |
| TUD2B080ACV32A | 3 | 80.00 | 40 | 17.5 | 28 |
| TUD2C080ACV42A | 4 | 80.00 | 40 | 21 | 28 |
| TUD2B100ACV32A | 3 | 80.00 | 40 | 17.5 | 28 |
| TUD2C100ACV52A | 5 | 80.00 | 40 | 21 | 28 |
| TUD2D120ACV52A | 5 | 80.00 | 40 | 24.5 | 28 |
| TUD2D140ACV52A | 5 | 80.00 | 40 | 24.5 | 28 |
XC80 variable-speed, 2-stage downflow/horizontal furnace models
| MODEL | NOMINAL TONS | AFUE | HEIGHT (IN.) | WIDTH (IN.) | DEPTH (IN.) |
|---|---|---|---|---|---|
| TDD2B060ACV32A | 3 | 80.00 | 40 | 17.5 | 28 |
| TDD2B080ACV32A | 3 | 80.00 | 40 | 17.5 | 28 |
| TDD2C100ACV52A | 5 | 80.00 | 40 | 21 | 28 |
| TDD2D120ACV52A | 5 | 80.00 | 40 | 24.5 | 28 |
XC80 variable-speed, 2-stage upflow/horizontal furnace models
