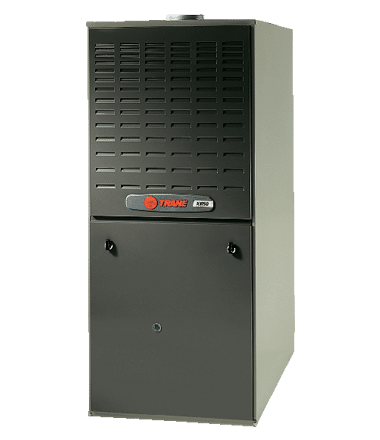

Trane XR80
The single-stage XR80 gas furnace is a good choice for those looking for solid heating. Tested, durable components help make sure your system is at optimum performance.
Overview
Efficient performance
The XR80 gas furnace features up to 80% AFUE
Durable construction
Materials for all components are tested again and again for long-lasting performance and reliability.
Cleaner, healthier indoor air
Add Trane CleanEffects to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.
Specifications
Every Trane furnace is packed with high-quality components. Each helps ensure that time after time, your unit will provide total comfort your family can rely on.
- Four-speed blower motor
- Self-diagnostic microelectronic controller
- Heavy steel cabinet
- Durable silicon nitride hot surface burners
- Multi-port, in-shot burners
- One-piece heat exchanger
- Pre-painted galvanized steel cabinet
- Upflow models have hinged blower doors and easy-open door latches
- Insulated cabinet for quiet operation
XR80 Upflow/Horizontal Furnace Models
| Model | Height (in.) | Width (in.) | Depth (in.) | Nominal Capacity Output (BTUH) | AFUE |
|---|---|---|---|---|---|
| TUD1A040A9241A | 40 | 14.5 | 28 | 32,000 | 80 |
| TUD1A040A9301A | 40 | 14.5 | 28 | 32,000 | 80 |
| TUD1A060A9241A | 40 | 14.5 | 28 | 47,000 | 80 |
| TUD1A060A9361A | 40 | 14.5 | 28 | 47,000 | 80 |
| TUD1B060A9361A | 40 | 17.5 | 28 | 47,000 | 80 |
| TUD1B080A9241A | 40 | 17.5 | 28 | 64,000 | 80 |
| TUD1B080A9361A | 40 | 17.5 | 28 | 63,000 | 80 |
| TUD1B080A9481A | 40 | 17.5 | 28 | 64,000 | 80 |
| TUD1C080A9601A | 40 | 21.0 | 28 | 64,000 | 80 |
| TUD1B100A9361A | 40 | 17.5 | 28 | 79,000 | 80 |
| TUD1B100A9451A | 40 | 17.5 | 28 | 80,000 | 80 |
| TUD1C100A9481A | 40 | 21.0 | 28 | 79,000 | 80 |
| TUD1C100A9601A | 40 | 21.0 | 28 | 79,000 | 80 |
| TUD1D100A9721A | 40 | 24.5 | 28 | 80,000 | 80 |
| TUD1C120A9541A | 40 | 21.0 | 28 | 96,000 | 80 |
| TUD1D120A9601A | 40 | 24.5 | 28 | 96,000 | 80 |
| TUD1D140A9601A | 40 | 24.5 | 8 | 111,000 | 80 |
XR80 Downflow/Horizontal Furnace Model
| Model | Height (in.) | Width (in.) | Depth (in.) | Nominal Capacity Output (BTUH) | AFUE |
|---|---|---|---|---|---|
| TDD1A060A9241A | 40 | 14.5 | 28 | 48,000 | 80 |
| TDD1A060A9361A | 40 | 14.5 | 28 | 48,000 | 80 |
| TDD1B060A9361A | 40 | 17.5 | 28 | 48,000 | 80 |
| TDD1B080A9361A | 40 | 17.5 | 28 | 64,000 | 80 |
| TDD1B080A9451A | 40 | 17.5 | 28 | 64,000 | 80 |
| TDD1B100A9451A | 40 | 17.5 | 28 | 80,000 | 80 |
| TDD1C100A9481A | 40 | 21.0 | 28 | 80,000 | 80 |
| TDD1C100A9541A | 40 | 21.0 | 28 | 81,000 | 80 |
| TDD1C120A9541A | 40 | 21.0 | 28 | 96,000 | 80 |
| TDD1D120A9601A | 40 | 24.5 | 28 | 96,000 | 80 |
| TDD1D140A9601A | 40 | 4.5 | 28 | 113,000 | 80 |
