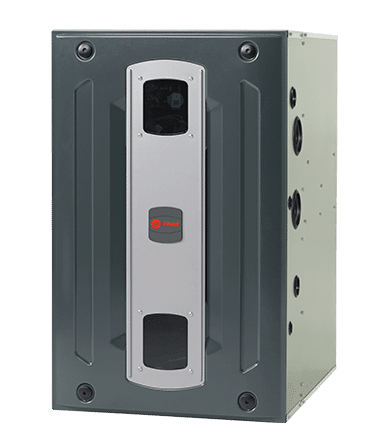

Trane S9V2
Estimated Price
Price depends on location, installation feels and additional components. Contact a dealer for pricing info.
The new S9V2 is more efficient in both heating and cooling, offers quiet operation, and maintains the DNA that Trane is known for: quality and reliability
Overview
Industry-changing cabinet design
The S-series furnace cabinet is designed to accommodate virtually any home, and is certified to be airtight to less than 1%
Efficient performance
The S9V2 is rated at 96% gas efficiency (AFUE), and the Vortica II blower is one of the most efficient in the industry, providing energy savings in both winter AND summer.
Comfortable, even heating
With stainless steel primary and secondary heat exchangers, and the ultra-efficient Vortica II variable speed blower, you can count on a consistent flow of warm, comfortable air with quiet operation.
Cleaner, healthier indoor air
Add Trane CleanEffects to your system for advanced air filtration that removes more dust, pollen and other irritants from conditioned air for a cleaner, healthier, more comfortable home.
Specifications
Every Trane furnace is packed with high-quality compnents. Each helps ensure that time after time, your unit will provide total comfort your family can rely on.
- Re-designed cabinet platform to fit in tighter spaces
- Variable-speed blower motor
- Heavy gauge, two-tone powder-painted cabinet
- Increased dehumidification with Comfort-R
- Stainless steel primary and secondary heat exchanger
- Insulated cabinet for quiet operation
S9V2 Upflow/Horizontal Furnace Models
Model | Nominal Tons | AFUE | Height (in.) | Width (in.) | Depth (in.) | Energy Star |
---|---|---|---|---|---|---|
S9V2B04OU3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B060U3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B060U4 | 4 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B080U3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B080U4 | 4 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2C080U5 | 5 | 96.00 | 34 | 21 | 28.75 | Yes |
S9V2C100U4 | 4 | 96.00 | 34 | 21 | 28.75 | Yes |
S9V2C100U5 | 5 | 96.00 | 34 | 21 | 28.75 | Yes |
S9V2D120U5 | 5 | 96.00 | 34 | 24.5 | 28.75 | Yes |
S9V2 Downflow Furnace Models
Model | Nominal Tons | AFUE | Height (in.) | Width (in.) | Depth (in.) | Energy Star |
---|---|---|---|---|---|---|
S9V2B040D3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B060D3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B080D3 | 3 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2B080D4 | 4 | 96.00 | 34 | 17.5 | 28.75 | Yes |
S9V2C100D4 | 4 | 96.00 | 34 | 21 | 28.75 | Yes |
S9V2C100D5 | 5 | 96.00 | 34 | 21 | 28.75 | Yes |
S9V2D120D5 | 5 | 96.00 | 34 | 24.5 | 28.75 | Yes |
